Fast Facts

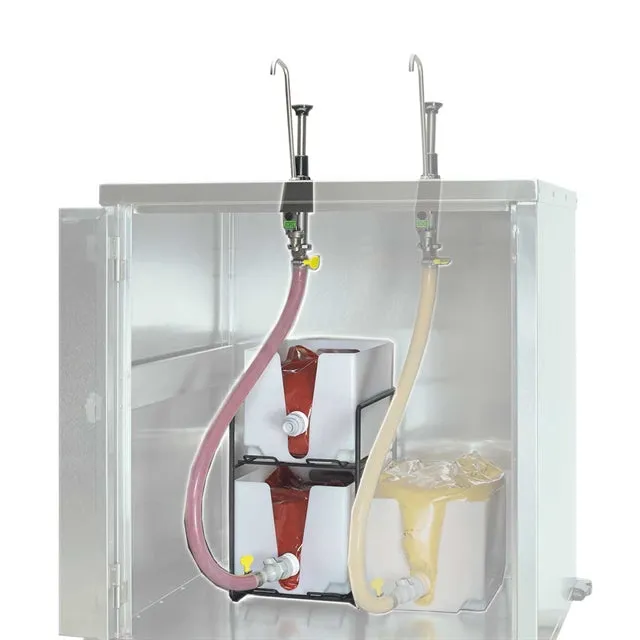

The manually operated remote system eliminates the hassles of a CO2 driven dispenser like squirting and slow discharge when the tank runs low. The flush-mounted stainless steel pump taps into a large condiment or salad dressing pouch below the counter. New racking design and Quick Connect feature makes reserve pouch transitions easy and mess-free; adapts to both 16 mm fitment and 38 mm connector pouch styles.
Application
- Volume dispensing at concession stands, stadiums, quick service restaurants

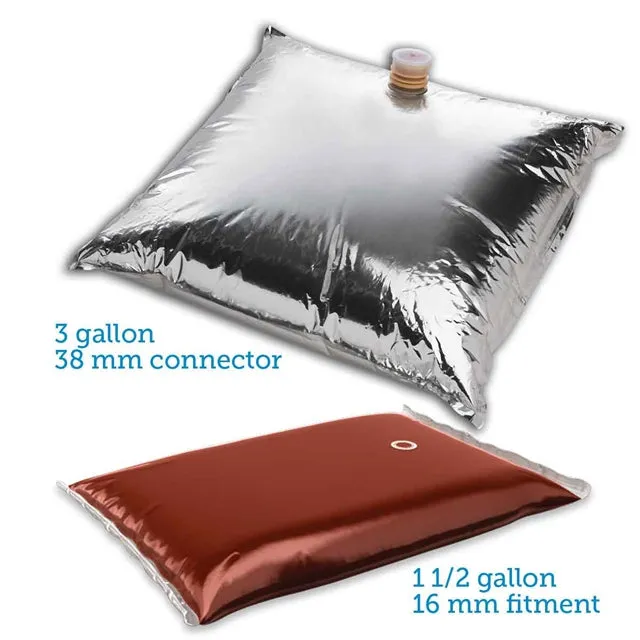

- Dispense drectly from common 1 1/2 gallon pouches with a 16 mm fitment and 3 gallon pouches with a 38 mm connector

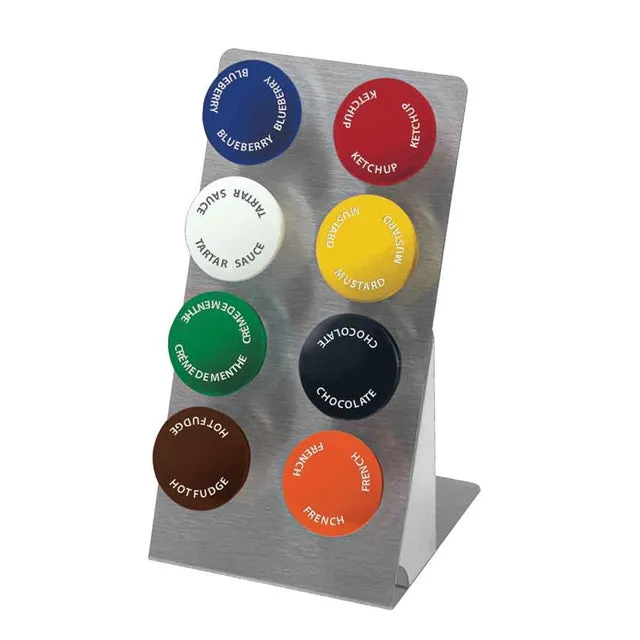

The stainless steel pump dispenses a 1 oz serving per stroke with the option to reduce the portion sizes in 1/8 oz increments. Set it to fill a soufflé cup with one pump to prevent bottlenecks at the condiment station. When you place your order, ask about a complimentary colored knob engraved with the condiment type below; black is standard.
Key Benefits
- Reduce bottlenecks at the condiment station; set portion to fill a soufflé cup with one pump
- NSF listed, clean-in-place certified; also disassembles completely for cleaning at a dish station
- Twin racking accepts 1 1/2 and 3 gallon pouches, keeping a condiment on tap and a reserve out of sight
- Quick-Connect System supports both 1 1/2 gallon with 16 mm fitment and 3 gallon with 38 mm connector pouch styles
| GTIN | 687329030897 |
| Height Above Container | 9 9/16" | 24.3 cm |
| Width | 4 1/2" | 11.4 cm |
| Depth | 11 1/2" | 29.2 cm |
| Weight | 18 lb |
| Dimensional Weight | 36 lb | 16.3 kg |
| International Dim Wt | 43 lb | 19.5 kg |
| Cutout | refer to installation manual |
| Works With | 1 1/2 gal (5.7 L) pouch w/16 mm fitment and 3 gal (11.4 L) pouch w/38 mm connector |
| Capacity | 1 1/2 & 3 gal | 5.7 & 11.4 L pouches |
| Dispense Type | pump |
| Full Portion | 1 oz | 30 mL |
| Portion | adjustable in 1/8 oz (3.7 mL) increments; up to 1 oz (30 mL) |
| NSF Listed | Y |
